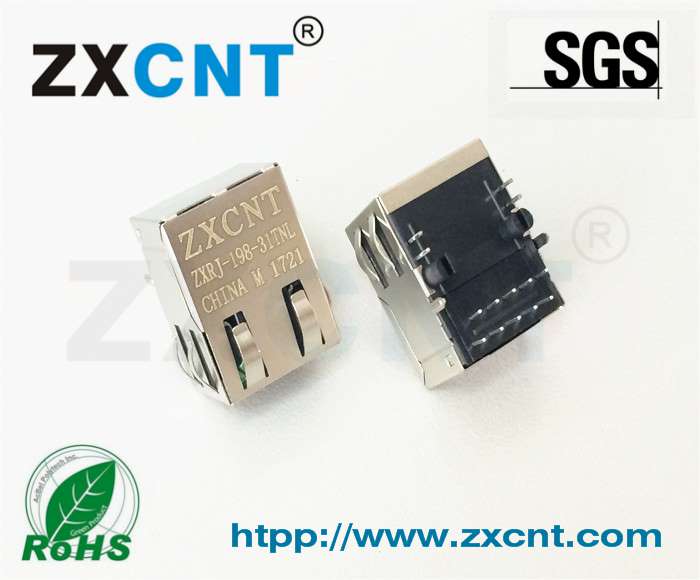

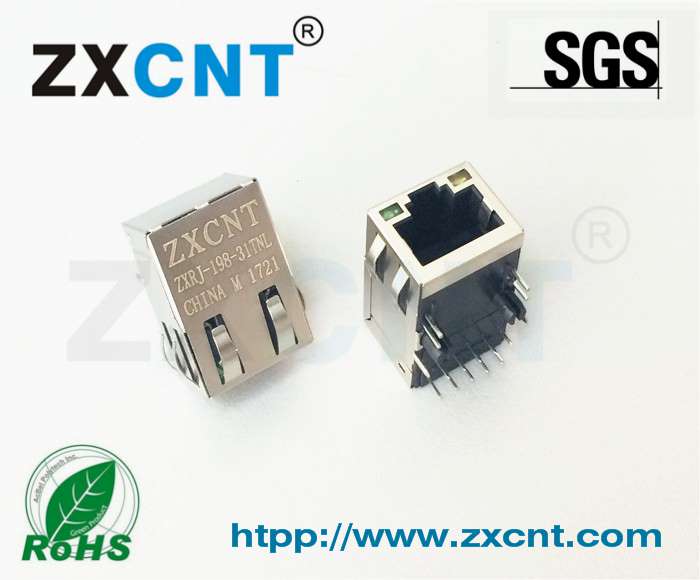

点击图片查看原图“RJ45内置百兆变压器带POE功能网口插座，反口带灯ZXRJ-198-31TNL”参数说明
| 是否有现货： | 是 | 认证： | ROHS |
| 品牌： | ZXCNT | 加工定制： | 是 |
| 额定电流： | 1.5 | 额定电压： | 125 |
| 环境温度： | 0-70 | 壳体材质： | 黄铜 |
| 导电体材质： | 磷铜 | 产品认证： | ROHS |
| 型号： | ZXRJ-198-31TNL | 商标： | ZXCNT |
| 包装： | 吸塑 | 产量： | 1000000000000 |
“RJ45内置百兆变压器带POE功能网口插座，反口带灯ZXRJ-198-31TNL”详细介绍
RJ45网络连接器集连接与滤波功能为一体产品主要用于：10/100/1000M网卡、集线器、以太网交换机、路由器、光纤收发器、光端机、IP电话、网络机顶盒、网络摄像机、网桥、计算机、通讯
| Characteristics | INTEGRATED CONNECTOR MODULES 10/100BASE-TX POE Single Port MagJack With LED |
| 2)SMD,THT and THT with USB | |
| 3)350μH min,OCL with 8mA bias | |
| 4)Complies with IEEE 802.3 | |
| 5)Extended temperature range 0°c~70°c ( or -40°c~+85°c ) available | |
| Operation/Application | ×DSL Modems |
| EMbedded PC | |
| LAN Applications | |
| Hub,Router,Switches | |
| AVR,DVR | |
| Supply Ability | 20000/Day |
| Brand Name | ZXCNT |
| Origin | Guangdong /China |
| Number | ZXRJ-198-31TNL |
| Connector Size | 21.3*15.9*13.5 |
| Connector Style | Jack |
| Cores Number | 10 |
| Latch Orientation | Tape UP/Down |
| Lead Free Solder Process | Wave solder capable to 265°c |
| Lead Free Solder Process | Always was RoHS Compliant |
| Applies To | Printed Circuit Board |
| Environmental Conditions | Office / Premises |
| Operating Temperature(°c) | 0°c~70°c / -40°c~+85°c |
| Datasheets | E-mail Inquiry tosales2@zxcnt.cn |
