点击图片查看原图“宏基机械TH-120E贴合机，TH-120E Laminating Machine”参数说明
| 是否有现货： | 是 | 认证： | CE |
| 类型： | 缝前设备 | 自动化程度： | 全自动 |
| 作用对象： | 海绵 | 驱动形式： | 气动 |
| 型号： | TH-120E | 规格： | 7200*2600*2400mm |
| 商标： | 宏基机械 | 包装： | 简单包装 |
| 电源：： | 380V/35KW | 加热滚筒规格：： | Φ1200mm*1830mm |
| 产量： | 1 |
“宏基机械TH-120E贴合机，TH-120E Laminating Machine”详细介绍

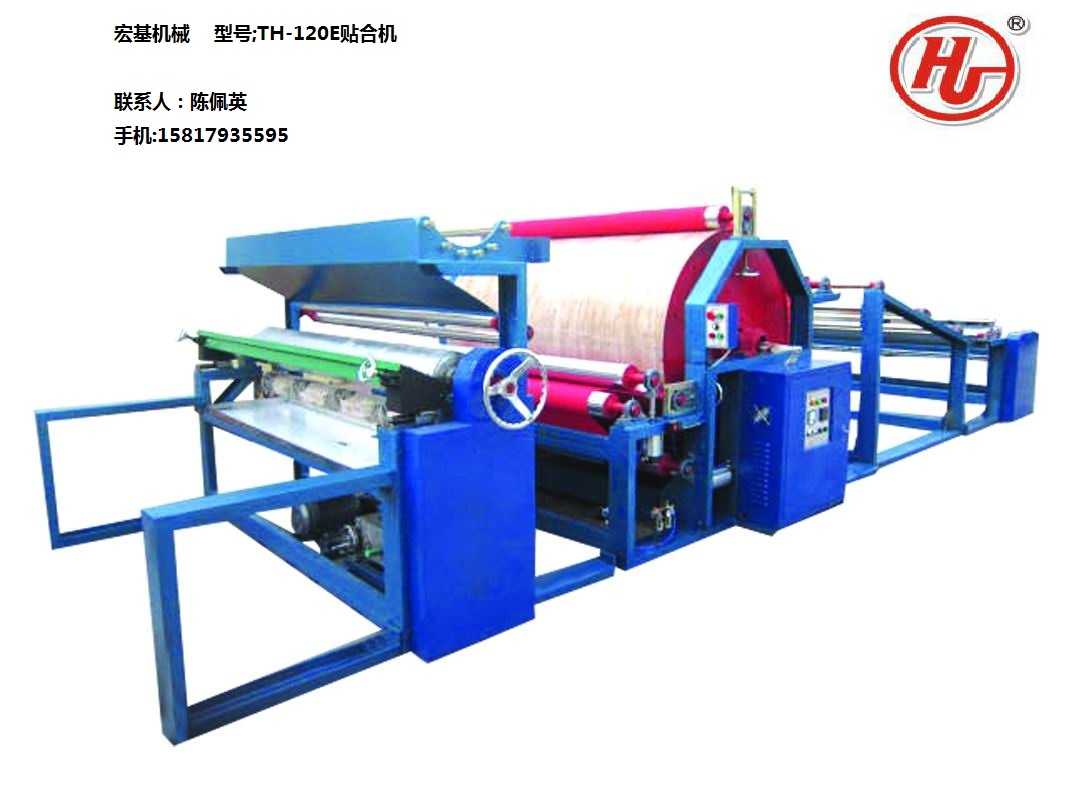

TH-120E 贴合机
TH-120E Fabirc Laminating Machine
用途：
主要用于泡棉，布类，PVC，EVA，上胶贴合，制鞋，制帽，手套，手提包，皮衣，沙发，汽车坐垫等原料的上胶贴合。
特点：
1.整机设计注重强化性能的稳定和安全检制。
2.根据布料和胶水的不同要求，量身定做各种规格的硬烙上胶轮，有效提高贴合品质，减少脱水的损耗。
3.采用气缸取代弹簧压轮，提高机械整体速度
4.本机是在吸取TH-120A立式单胶槽贴合机和同类先进机型的优点后再对传统弹簧压轮进行改良的成果。
技术参数：
电源： 380V/35KW
动力： 3HP+2HP
加热滚筒规格：Φ1200mm*1830mm
工作宽度：1700mm
工作速度：0-30码/分钟
主机尺寸：7200*2600*2400mm
重量：3000/kg
Function:This machine is used for the glue lamination of foam, fabrics, PVC, EVA as well as the materials for making shoes, cups, gloves, handbags, leather garments, sofa, seat cushions of the car and etc.
Features:
1. The design of the complete machine emphasizes on the stable performance and secure supervision.
2. According to the request of the cloth and the glue, a variety of specification chromium rollers are made by measurement, which improved the lamination quality effectively and decreased the glue consumption.
3. It adopts the steel belt of high temperature resistance on hard chromium roller and the process of pressing cloth proceeds evenly.
4. Replacing the spring pressing roller with the cylinder, which raises the whole speed.
6. This machine is an achievement of improving the traditional spring pressing roller, on the basic of absorbing the merits of TH-120A vertical glue trough laminating machine and congeneric advanced machines.
Technical parameter:
1.Power supply/power：380V/35KW
2. Motion: 3HP+2HP
3.Specification of the heating roller: Φ1200mm×1830mm
4.Working width: 1700mm
5.Working speed: 0-45yards/min
6.Dimension of the machine: 7800mm×2600mm×2400mm
7.Weight: 2200KG
